1.Black matte cover, aviation aluminum, more lightweight
2.Light and compact design with low- noise running
3.Chain safety factor : 8:1

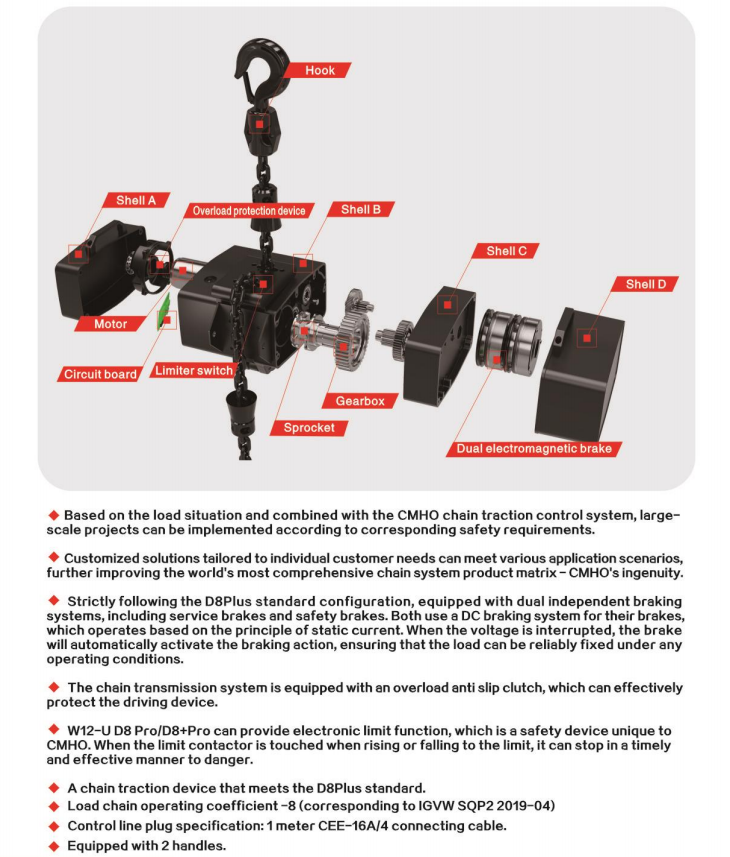

4.Dual electromagnetic brake system ,automatically stop the motor upon power failure, ensuring safety.
5.Protection class : IP66
6.Limit switch: upper and lower limiter switch , and is equipped with adjustable limit blocks , when the height reach the limit height , will stop automatically

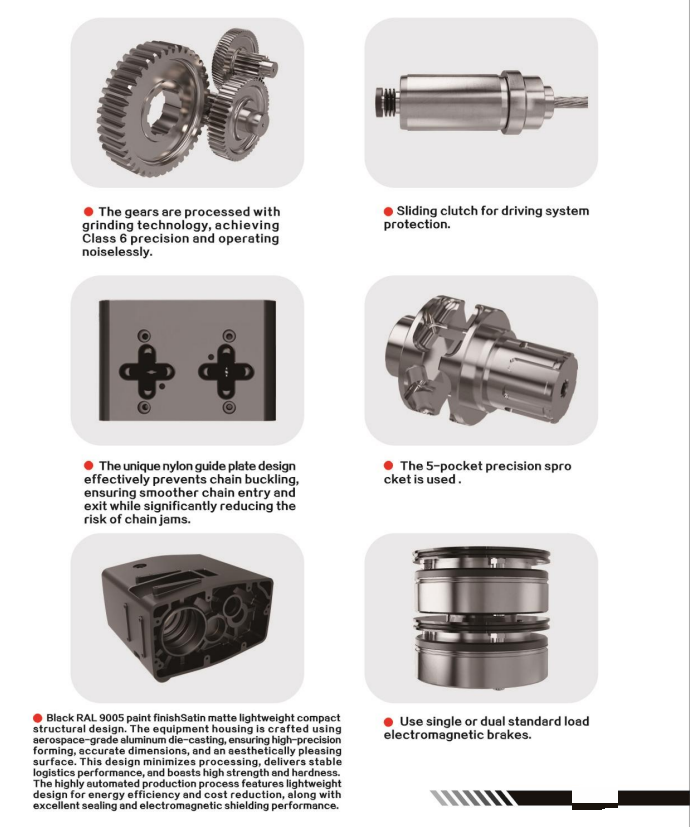

7.Gear Protection:sealed gearbox & special lubrication,eliminating the risk of oil leakage and protecting your precision equipment
8.chain bag made from high-strength polyester textile material
9.precise chain guide with 5 - pocket chain sprocket wheel
10.Clutch overload protection
11.Suspension type: standard or climbing hoists
12.2 handles

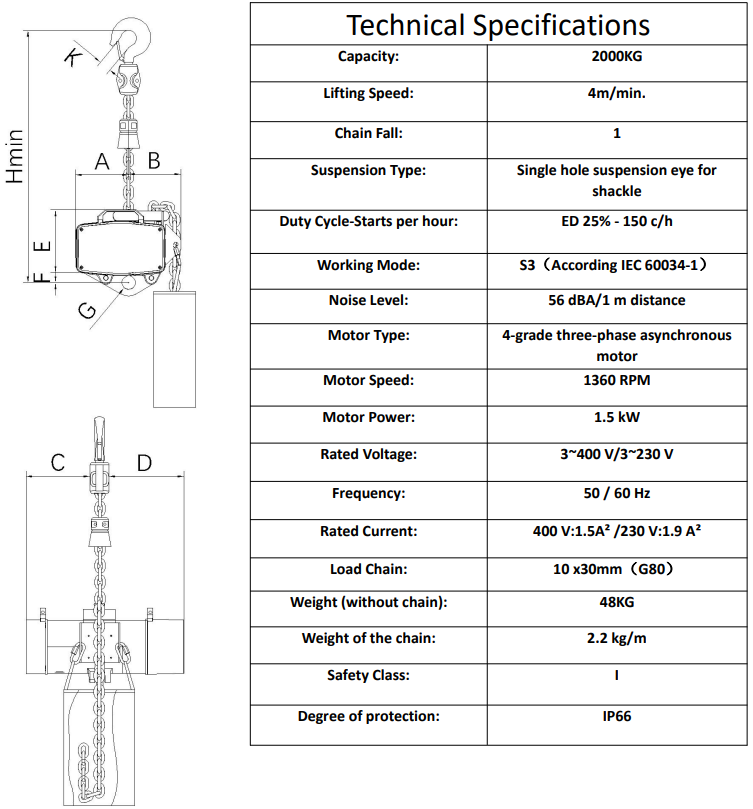

| Rated load | Lifting speed | Motor power | Voltage | Customized voltage | Chain | Noise test | IP code | Brake (Optional) | Body weight |
| 2000KG | 4M/min | 1.5KW | 380V, 3ph, 50Hz | 198V-440V 3ph 50/60Hz | 10*30mm 2.2KG/m G80Galvanized national standard | ≤53dB | IP66 | Single brake/Double brake | 49KG |
| limiting device (Optional) | |||||||||
